SL1509HV 5V-48V降压12V、5V、3.3V2Adcdc降压恒压IC

dcdc48V降压12V/2A电源芯片

dcdc48V降压5V/2A恒压芯片

dcdc48V降压3.3V/2A稳压IC

Description

The SL1509HV are monolithic IC designed for a stepdown

DC/DC converter, and own the ability of driving a

2A load without additional transistor. It saves board space.

The external shutdown function can be controlled by logic

level and then come into standby mode. The internal

compensation makes feedback control having good line and

load regulation without external design. Regarding protected

function, thermal shutdown is to prevent over temperature

operating from damage, and current limit is against over

current operating of the output switch. If current limit function

occurs and VFB is down below 0.5V, the switching frequency

will be reduced. The SL1509HV operates at a switching

frequency of 150KHz thus allow smaller sized filter

components than what would be needed with lower frequency

switching regulators. Other features include a guaranteed

+4% tolerance on output voltage under specified input voltage

and output load conditions, and +15% on the oscillator

frequency. The output version included fixed 3.3V, 5V, 12V,

and an adjustable type. The chips are available in a standard

8-lead SOP-8 package.

Features

• Output Voltage: 3.3V, 5V, 12V and Adjustable Output

Version

• Adjustable Version Output Voltage Range, 1.23V to

18V+4%

• 150KHz +15% Fixed Switching Frequency

• Voltage Mode Non-Synchronous PWM Control

• Thermal-Shutdown and Current-Limit Protection

• ON/OFF Shutdown Control Input

• Operating Voltage can be up to 48V

• Output Load Current: 2A

• SOP-8 Packages

• Low Power Standby Mode

• Built-in Switching Transistor On Chip

• SOP-8: Available in “Green” Molding Compound

(No Br, Sb)

• Lead Free Finish/ RoHS Compliant (Note 1)

Applications

• Simple High-Efficiency Step-Down Regulator

• On-Card Switching Regulators

• Positive to Negative Converter

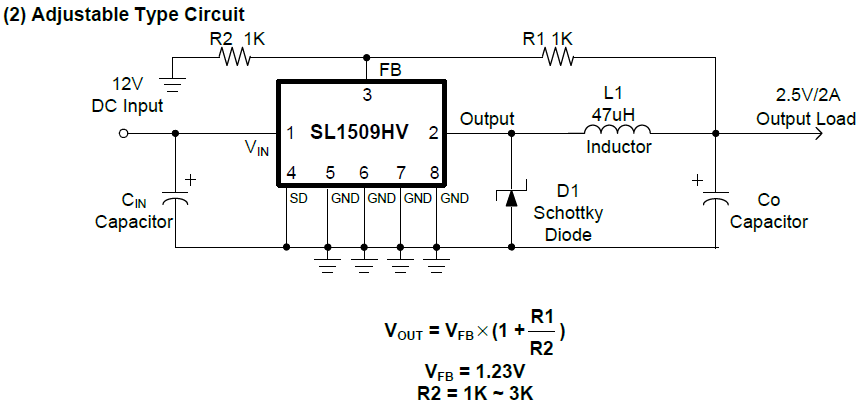

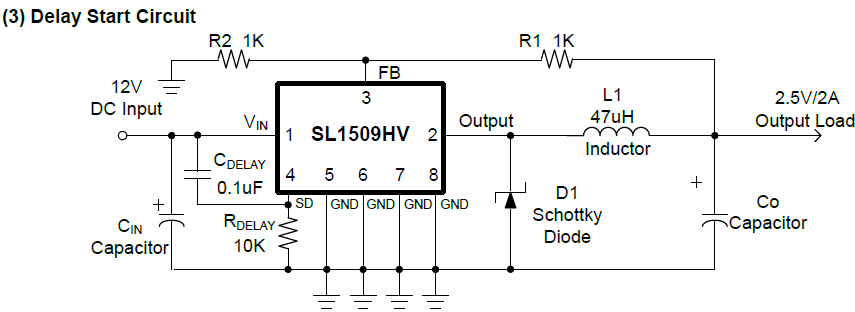

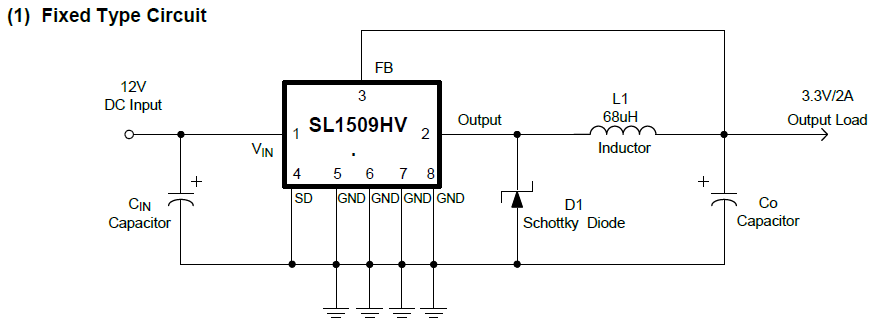

Typical Application Circuit
